200L Solar Heat Pump
DOMESTIC COMPACT
Model 200-08AC6-290
The Quantum 200L Solar Heat Pump is suitable for medium-sized families and is an ideal replacement for an electric storage unit.
Rebates available for eligible installations
Compact design with integrated refrigeration unit
Energy efficient hot water production – reduced energy use and greenhouse gas emissions*
Easy installation
Warranty: 5 years tank, 2 years electrics and refrigeration.
*Compared to traditional electric hot water storage units – Heat pump efficiency will vary by installation location.
Specifications
Model Number
Storage Size
Rated Delivery
Heating Output
Power Input
COP of Heating*
Compressor
Refrigerant
Electrical Supply
Circuit
Water Connections
PTR Valve Setting
ECV Setting
PLV Without ECV Fitted
PLV With ECV Fitted
Operating Sound Level**

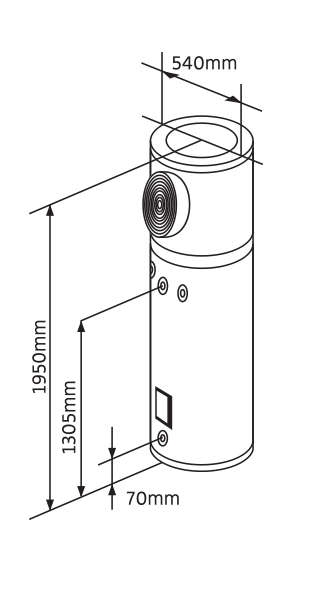

Dimensions (Height x Diameter)
Nett (Empty) Weight
Ambient Operating Temperature
Water Temperature Setting
Hot Water Production Rate*
200-08AC6-290
200 L
175 L
3.61 kW
0.84 kW
4.3
Rotary
R290
220-240V/50Hz/1Ph
10 Amps
3/4″ BSP
850 kPa
700 kPa
500 kPa
300-500 kPa
50 dBA
1950 mm x 540 mm
115 kg
-10 °C to +35 °C
60 °C
72 L/hr
*At an ambient temperature of 20°C. **At a height of 1.5 m above ground level.
